Hydraulic Eco Compact Quad Stacker – 2920 | Liftex Trading
130,000.00 د.إ

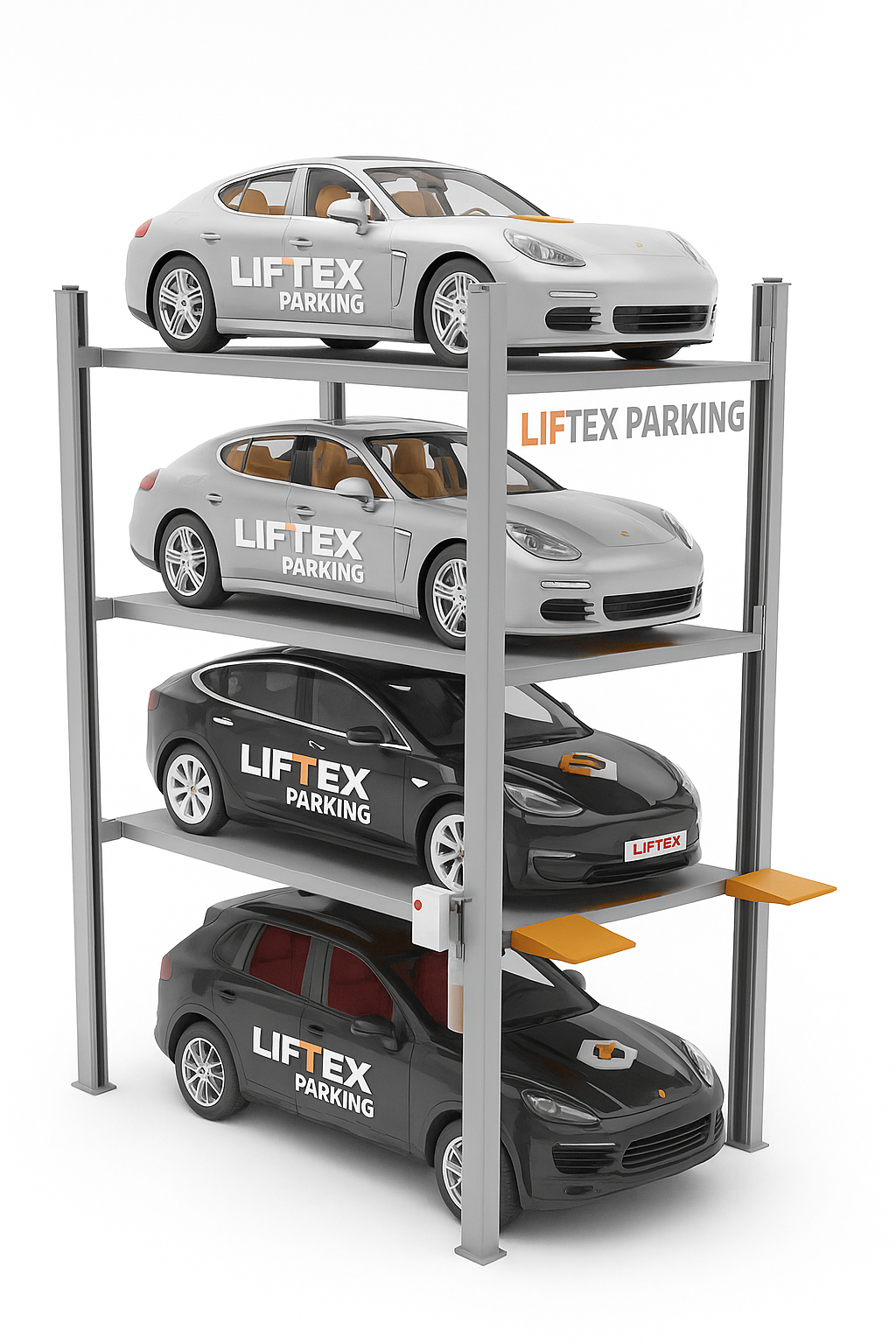

Hydraulic Eco Compact Quad Stacker
3–5 Levels Car Storage Lift
If you are in need of maximized parking capacity without requiring any additional real estate, then high stackers are the perfect solution for you. These lifts provide up to 5 parking spaces vertically, handling up to 3,000kg on each level. Their robust structural design ensures safety, durability, and adaptability for both indoor and outdoor use.
- Vertical parking up to 5 cars high
- Load capacity: 3,000kg per platform
- Ideal for residential, commercial & valet parking
- Hydraulic operation for smooth lifting
- Customizable height configurations
newly developed 4-floor version ,can be used as a 4-floor stacker parking like eco version. the equipment is used as valet parking or storage. The platforms move only vertically driven by a hided strong hydraulic cylinder with wire ropes.
Features
– Commercial grade
– Overlap platform design
– Ramps total height 150mm
– Capacity of 2000KG per platform
– Entrance width 2452mm, 2nd and 3rd floor 1600mm driven width
– Clear height of GF 1850mm and 2nd -3rd floor 1600mm
– 4.0kw hydraulic pump
– Powder coating finishing
– Dynamic anti-fall lock
– Dust/oil dripping cover
– Lock release failure detection
– Semi-auto lock release
– Emergency stop button
– Up & down key switch
– Self-standing & supporting structure (Optional)
– TUV Rheinland Certified
Specifications
| Lifting capacity | 2000kg per parking space |
| Lifting height | Ground floor 1850mm and 2nd -3rd floor 1600mm |
| Equipment height | 5752mm |
| Usable platform width | 2452mm |
| Total width | 2802mm |
| Total length | 5700mm |
| Total ramp height | 190mm |
| Power pack | 4.0Kw hydraulic pump |
| Available voltage of power supply | 208V-480V, 3 Phase, 50/60Hz |
| Operation mode | Key switch |
| Operation voltage | 24V |
| Safety lock | Dynamic anti-falling lock |
| Lock release | Semi-auto lock release |
| Lifting speed | 55s |
| Finishing | Powdering coating |
