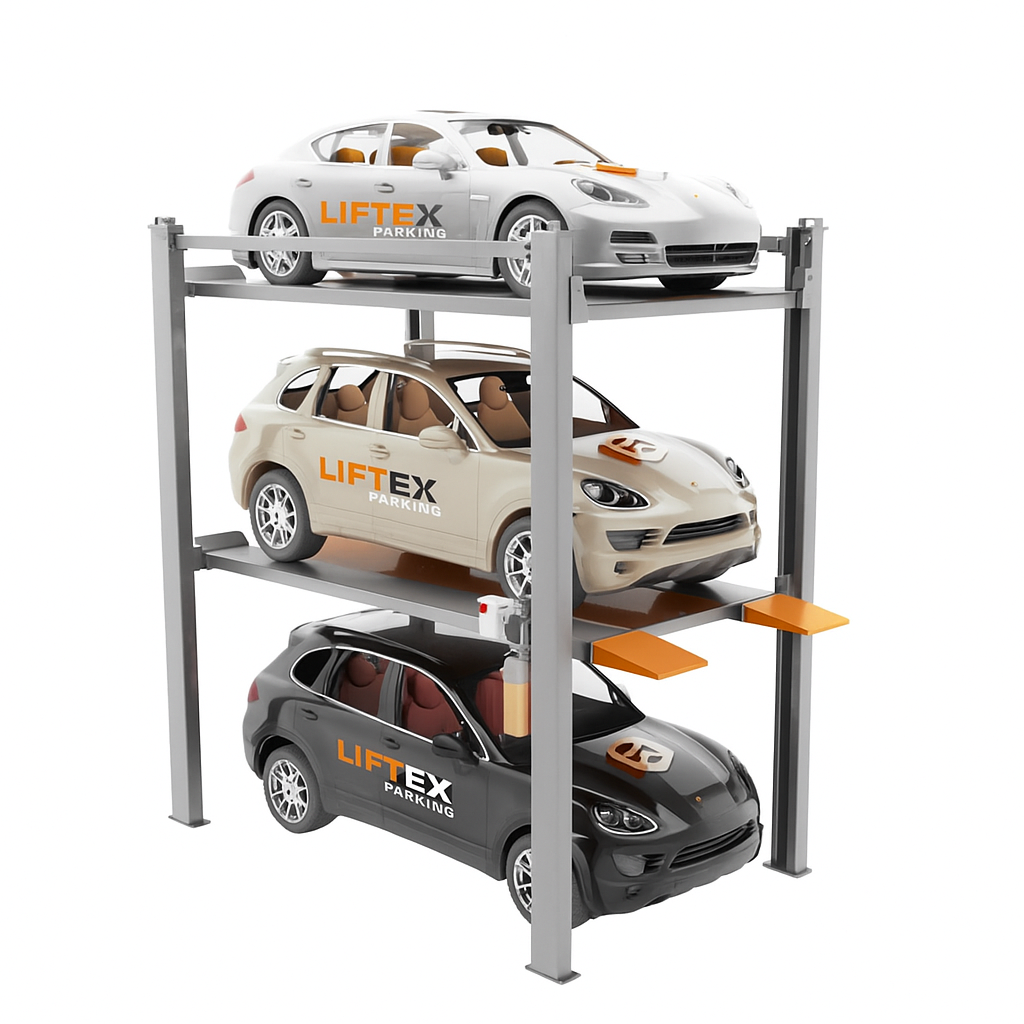

Hydraulic Eco Compact Triple Stacker
3–5 Levels Car Storage Lift
If you are in need of maximized parking capacity without requiring any additional real estate, then high stackers are the perfect solution for you. These lifts provide up to 5 parking spaces vertically, handling up to 3,000kg on each level. Their robust structural design ensures safety, durability, and adaptability for both indoor and outdoor use.
- Vertical parking up to 5 cars high
- Load capacity: 3,000kg per platform
- Ideal for residential, commercial & valet parking
- Hydraulic operation for smooth lifting
- Customizable height configurations
newly developed 3-floor version and can be used as a 3-floor stacker parking like eco version of HP3130. the equipment is used as valet parking or storage. The platforms move only vertically driven by a hided strong hydraulic cylinder with wire ropes.
Features
– Commercial grade
– Overlap platform design
– Ramps total height 150mm
– Ground floor unlimited, 2nd floor 2500kg and 3rd floor 2000kg capacity
– Entrance width 2492mm, 2nd floor 2100mm and 3rd floor 2200mm driven width
– Clear height 2100mm on each floor
– 4000mm/min (no-load) traveling speed
– 3.0kw hydraulic pump
– Powder coating finishing
– Dynamic anti-fall lock
– Dust/oil dripping cover
– Lock release failure detection
– Semi-auto lock release
– Emergency stop button
– Up & down key switch
– Self-standing & supporting structure (Optional)
– TUV Rheinland Certified
Specifications
| 1 | 2 | 3 | |
| Lifting capacity | Ground floor unlimeted, 2nd floor 2500kg and 3rd floor 2000kg | Ground floor unlimeted, 2nd floor 2500kg and 3rd floor 2000kg | 2000kg per space |
| Lifting height | Ground floor and 2nd floor 2100mm | Ground floor 1850mm, 2nd floor 1600mm | Ground floor 1900mm, 2nd floor 1650mm |
| Usable platform width | 2492mm | 2492mm | 4892mm |
| Power pack | 3Kw hydraulic pump | 3Kw hydraulic pump | 5.5Kw hydraulic pump |
| Available voltage of power supply | 280V-480V, 1 or 3 Phase, 50/60Hz | 280V-480V, 1 or 3 Phase, 50/60Hz | 280V-480V, 3 Phase, 50/60Hz |
| Operation mode | Key switch | Key switch | Key switch |
| Operation voltage | 24V | 24V | 24V |
| Safety lock | Dynamic anti-falling lock | Dynamic anti-falling lock | Dynamic anti-falling lock |
| Lock release | Semi-auto lock release | Semi-auto lock release | Semi-auto lock release |
| Lifting time | 68s | 60s | 70s |
| Finishing | Powdering coating | Powder coating | Powder coating |
