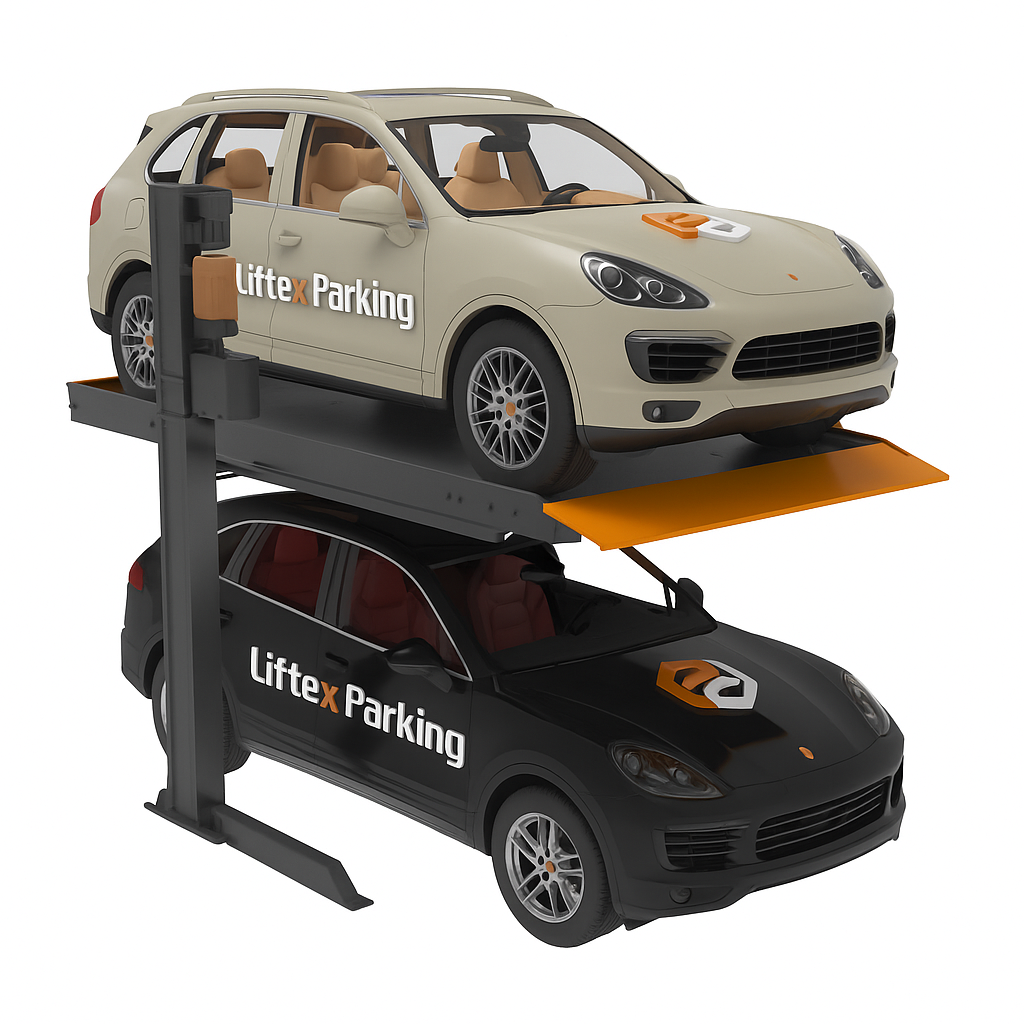

2700kg Hydraulic Two Post Car Parking Lift
Simple parking, simple life. Stacker parking lifts optimize your space by stacking vehicles vertically. Fast installation, convenient operation, and low‑cost maintenance.
- Space saving vertical stacking
- 2‑post, 4‑post, single‑post & scissor options
- Capacity options from 1,800–3,600 kg (model‑dependent)
- Ideal for permanent parking, valet, storage, or attended areas
the most popular parking stackers, quality proven by more than 20,000 users in past 10 years. They provide a simple and greatly cost-effective way to create 2 dependent parking spaces above each other, suitable for permanent parking, valet parking, car storage, or other places with attendant. Operation can be easily made by a key switch panel on control arm.
– Lifting capacity 2700kg
– Car heights on ground up to 2050mm
– Platform width up to 2500mm
– Lifting height adjustable by limit switch
– Electric auto lock release enables easier operation.
– 24v control voltage avoids electric shock
– Galvanized platform, high-heel friendly
– Bolts & nuts passing 72hrs Salt Spray Test.
– Driven by hydraulic cylinder + Korean lifting chain
– Synchronization chain keeps platform level under all conditions
– Akzo Nobel powder coating provides long lasting surficial protection
– CE compliant, certified by TUV Rheinland.
Specifications
| 1 | 2 | 3 | |
| Lifting capacity | 2700kg/6000lbs | 2300kg/5000lbs | 1800kg/4000lbs |
| Lifting height | 2100mm/83″ | 2100mm/83″ | 1800mm/71″ |
| Usable platform width | 2100mm/83″ | 2100mm/83″ | 2100mm/83″ |
| Power pack | 2.2Kw | 2.2Kw | 2.2kw |
| Power supply | 100-480V, 50/60Hz | 100-480V, 50/60Hz | 100-480V, 50/60Hz |
| Operation mode | Key switch | Key switch | Key switch |
| Operation voltage | 24V | 24V | 220v |
| Safety lock | Dynamic anti-falling lock | Dynamic anti-falling lock | Dynamic anti-falling lock |
| Lock release | Electric auto release | Electric auto release | Electric auto release |
| Lifting time | <55s | <55s | <35s |
| Finishing | Powdering coating | Powder coating | Powder coating |
