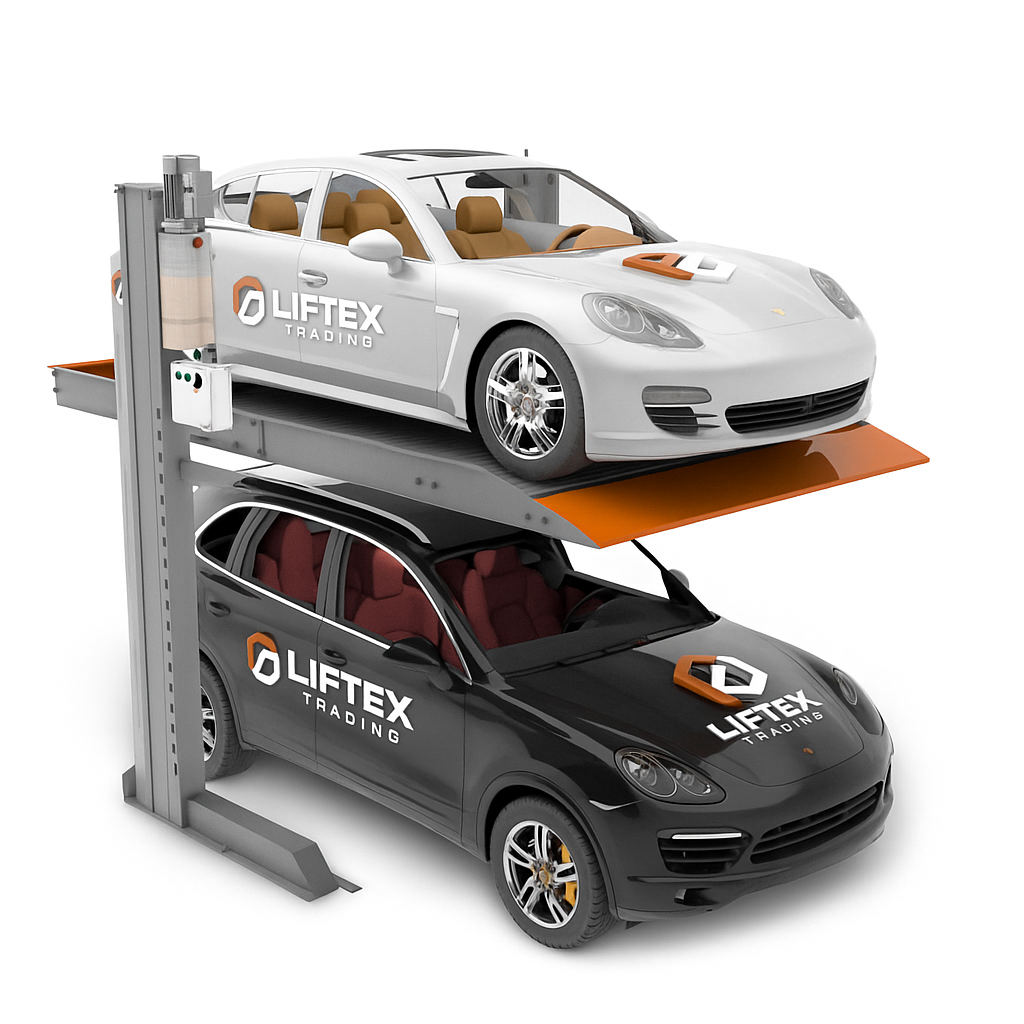

Hydraulic Two Post Car Stacker – 2300 kg Compact Parking Lift | Liftex Parking
70,000.00 د.إ
is one of the most popular parking stackers, quality proven by more than 20,000 users in past 10 years. It provides a simple and greatly cost-effective way to create 2 dependent parking spaces above each other, suitable for permanent parking, valet parking, car storage, or other places with attendant. Operation can be easily made by a key switch panel on control arm.
– Single platform for 2 vehicles
– Faster lifting speed with single cylinder
– Lifting capacity: 2300kg
– Car heights on ground: up to 2050mm
– Platform width: 2100mm as standard, optionally up to 2500mm
– Sharing post feature allows tandem installations in minimum space
– 24v control voltage avoids electric shock
– Galvanized platform, high-heel friendly
– Bolts & nuts passing 72hrs Salt Spray Test.
– Automatic shut-off when operator releases key switch
– Akzo Nobel powder coating provides long lasting surficial protection
– CE compliant, certified by TUV Rheinland.
Simple parking, simple life — stack cars vertically to double space. Fast install, low maintenance.
is one of the most popular parking stackers, quality proven by more than 20,000 users in past 10 years. It provides a simple and greatly cost-effective way to create 2 dependent parking spaces above each other, suitable for permanent parking, valet parking, car storage, or other places with attendant. Operation can be easily made by a key switch panel on control arm.
– Single platform for 2 vehicles
– Faster lifting speed with single cylinder
– Lifting capacity: 2300kg
– Car heights on ground: up to 2050mm
– Platform width: 2100mm as standard, optionally up to 2500mm
– Sharing post feature allows tandem installations in minimum space
– 24v control voltage avoids electric shock
– Galvanized platform, high-heel friendly
– Bolts & nuts passing 72hrs Salt Spray Test.
– Automatic shut-off when operator releases key switch
– Akzo Nobel powder coating provides long lasting surficial protection
– CE compliant, certified by TUV Rheinland.
Specifications
| 1 | 2 | 3 | |
| Lifting capacity | 2700kg /6000lbs | 2300kg /5000lbs | 2000kg/4400lbs |
| Lifting height | 2100mm /6’10” | 2100mm /6’10” | 1850mm /6’1″ |
| Usable platform width | 2100mm /6’10” | 2100mm /6’10” | 2200mm /7’3″ |
| Outer width | 2547mm /8’4″ | 2547mm /8’4″ | 2540mm /8’4″ |
| Application | SUV+SUV | SUV+Sedan | Sedan+Sedan |
| Power pack | 2.2Kw | ||
| Power supply | 100-480V, 50/60Hz | ||
| Operation mode | Key switch | ||
| Operation voltage | 24V | 24V | 220v |
| Safety lock | Dynamic anti-falling lock | Dynamic anti-falling lock | Positioning lock |
| Lock release | Electric auto release | ||
| Lifting time | <55s | <55s | <35s |
| Finishing | Powdering coating | ||
