Garage Car Turntable UAE – Rotating Parking Platform

55,000.00 د.إ

AED 55,000 standard configuration: 4.5 m diameter car turntable with 3,000 kg (3 ton) load capacity. Designed as a 360° rotating car platform for villas, garages, parking areas and automotive projects in the UAE.

Customizable on request: diameter, load capacity, platform/deck finish, control system and installation configuration can be adapted to the project requirements. Custom specifications may affect the final quotation.

Car Turntable Platform with Pin-Gear Drive – Adjustable Heights, Smooth 360° Rotation, Indoor/Outdoor Use, 3–8 Ton Capacity

Specification Chart

Feature Details
Mesa Diameter 4m, 4.5m, 5m, 5.5m, 6m, 7m, 8m, 9m
Mesa Thickness 310–330mm
Period of Rotation 0.2–1 RPM (frequency control)
Turn Angle 360° continuous
Carrying Capacity 3,000–8,000 kg
Drive Type Pin-gear transmission
Motor Power 1.5 kW
Power Supply AC110V, AC220V, or AC380V (selectable)
Mesa Material Density board, plywood board, plate pattern aluminum alloy board (selectable)
Control Modes Manual control, remote control, positive/negative rotation, angle control, stop position control (selectable)
Pin Tooth Plate Thickness 10mm
Gear Material High-strength nylon (abrasion-resistant, corrosion-resistant, noise-reducing)
Supporting Wheels Material Nylon (excellent mechanical strength, abrasion resistance, noise-reducing)
Height Adjustability Adjustable via four supporting bolts and center seat shaft sleeve device
Application Indoor and outdoor installations
Unique Features Pin-gear mechanism, nylon gears and wheels for noise reduction, height adjustability

Car Turntable UAE – AED 55,000 Standard Configuration

The standard configuration is a 4.5 metre diameter, 3-ton (3,000 kg) capacity 360° rotating car platform, priced at AED 55,000. It is suitable for residential garages, villas, basements, showrooms and other vehicle-access projects across the UAE.

Customization is available on request. Platform diameter, load capacity, deck finish/material, control method and installation arrangement can be specified according to the vehicle, site dimensions and project requirements. Custom configurations are quoted separately.

Car Turntable Platform with Pin-Gear Drive

Effortlessly solve driveway challenges and limited parking access with our advanced car turntable platform. Designed for both indoor and outdoor use, this rotating platform offers smooth, reliable, and low-maintenance operation, ensuring convenience and enhanced functionality.

Innovative Design and Construction

Our car turntables are built with durability and precision in mind. The turntable’s pin-gear drive mechanism ensures smooth operation with minimal wear and tear, outclassing traditional friction drive systems that are prone to noise and higher maintenance.

  • Pin Tooth Plate: Crafted from 10mm thick steel, precision-cut using CNC machinery, and treated for maximum durability.
  • Nylon Components: High-strength nylon gears and wheels deliver superior abrasion and corrosion resistance while significantly reducing operational noise.
  • Adjustable Height: Equipped with four supporting bolts and a central seat with adjustable shaft sleeves, the turntable can accommodate uneven installation surfaces.

Garage Car Turntables Seamless Functionality and Efficiency

The car turntable offers unparalleled rotational capabilities, making it an ideal solution for tight parking spaces and restricted driveway access.

  • Rotation and Capacity: Capable of 360° continuous rotation at variable speeds (0.2–1 RPM), the turntable can support weights ranging from 3,000 to 8,000 kg, making it suitable for a wide range of vehicles.
  • Mesa Options: Choose from multiple diameter sizes (4m to 9m) and materials, including density board, plywood, and pattern aluminum alloy, to match your specific requirements.

Garage Car Turntables Advanced Control and Safety Features

Our platform is designed with user convenience and safety in mind.

  • Control Options: Operate the turntable using manual control, remote control, or angle-specific rotation control, ensuring precision and ease of use.
  • Reliable Motor and Drive: The AC frequency conversion brake motor ensures smooth engagement of the main gear and stable rotation.

Garage Car Turntables Key Advantages Over Competitors

Our car turntable stands out with its innovative design and cutting-edge features:

  1. Pin-Gear Drive Mechanism: Provides superior reliability, lower maintenance, and quieter operation compared to friction-drive systems.
  2. Noise Reduction: High-strength nylon gears and wheels significantly reduce noise levels during operation.
  3. Customizable Options: Choose from various sizes, materials, and control modes to meet your unique needs.

Garage Car Turntables Versatile Applications

Whether you need a turntable for a residential driveway, a commercial garage, or an industrial parking lot, this platform offers unmatched versatility and performance.

Upgrade your parking experience with our Car Turntable Platform with Pin-Gear Drive—a reliable and innovative solution for modern parking challenges.

Reviews

There are no reviews yet.

Be the first to review “Garage Car Turntable UAE – Rotating Parking Platform”

Related products

Ferrari and Lamborghini Car Turntable Dubai

Car Turnable

Supercar Car Turntable Dubai – Ferrari & Lamborghini Garage

55,000.00 د.إ
Add to cart
Single Post Car Parking Lift – Compact Hydraulic System | Liftex Parking

Car parking lift

Single Post Car Parking Lift – Compact Hydraulic System | Liftex Parking

80,000.00 د.إ
Add to cart

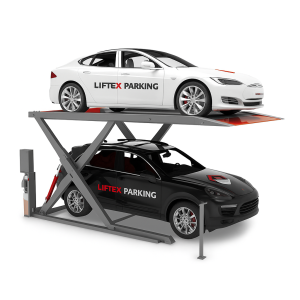

Scissor Car Lift
